An optimized surrogate model using differential evolution algorithm for computing parameters of antennas

Basit Öğe Kaydı
dc.authoridhttps://orcid.org/0000-0002-5229-4018
dc.authoridhttps://orcid.org/0000-0002-7687-9061
dc.authorscopusid36705310900
dc.authorscopusid36728602600
dc.authorscopusid54943995000
dc.authorwosidD-7354-2015
dc.authorwosidG-2829-2015
dc.authorwosidGGW-3974-2022
dc.contributor.authorÜstün, Deniz
dc.contributor.authorToktaş, Feyza
dc.contributor.authorToktaş, Abdurrahim
dc.date.accessioned2023-09-05T09:40:53Z
dc.date.available2023-09-05T09:40:53Z
dc.date.issued2022
dc.departmentFakülteler, Mühendislik Fakültesi, Bilgisayar Mühendisliği Bölümü
dc.description.abstractIn this study, a method based on surrogate model (SM) for computational analysis of antenna parameters such as the resonant frequency (RF) and bandwidth (BW) is presented. Moreover, it is attempted to optimize the SM using evolutionary optimization algorithms in order to further improve the accuracy of the SM. In the conventional computational approaches, the weighting vectors of the SM have been analytically determined. We have optimally achieved the weighting vectors of the SM through differential evolution (DE) and particle swarm optimization (PSO) algorithms. The capabilities of the algorithms are hereby compared with each other. The methodology is applied to the analysis of rectangular microstrip antenna (RMA), including a number of 33 measured RMAs with different geometrical and electrical parameters. From the total number of RMAs, 27 and 6 RMAs are, respectively, used in the construction and the test of the SM. Furthermore, the SM is verified through a comparison with the literature in terms of total absolute errors (TAEs). The results show that the SM with DE computes the most accurate RF and BW with the TAEs of 0.0099 GHz and 0.131%, respectively. The accuracy of the SM is further raised by 78%, thanks to the optimization of SM with DE. Therefore, a novel computational analysis method based on SM is implemented to computation of an antenna parameter with higher accuracy, and SM is successfully optimized by DE. The proposed method is able to easily implement to the stringent engineering problems based on simulated or measured data for computer-aided design (CAD).
dc.identifier.citationÜstün, D. Toktaş, F. ve Toktaş, A. (2022). An optimized surrogate model using differential evolution algorithm for computing parameters of antennas. International Journal of Numerical Modelling-Electronic Networks Devices and Fields, 35,2, 1-12.
dc.identifier.doi10.1002/jnm.2951
dc.identifier.issue2en_US
dc.identifier.scopus2-s2.0-85114310313
dc.identifier.urihttps://hdl.handle.net/20.500.13099/178
dc.identifier.volume35en_US
dc.identifier.wosWOS:000692850500001
dc.identifier.wosqualityQ3
dc.indekslendigikaynakWeb of Science
dc.institutionauthorÜstün, Deniz
dc.language.isoen
dc.publisherWiley
dc.relation.ispartofInternational Journal of Numerical Modelling-Electronic Networks Devices and Fields
dc.relation.publicationcategoryMakale - Uluslararası Hakemli Dergi - Kurum Öğretim Elemanı
dc.rightsinfo:eu-repo/semantics/restrictedAccess
dc.subjectbandwidth
dc.subjectdifferential evolution
dc.subjectmicrostrip antennas
dc.subjectparticle swarm optimization
dc.subjectresonant frequency
dc.subjectsurrogate model
dc.titleAn optimized surrogate model using differential evolution algorithm for computing parameters of antennas
dc.typeArticle

Dosyalar

Orijinal paket
Listeleniyor 1 - 1 / 1
Küçük Resim
İsim:

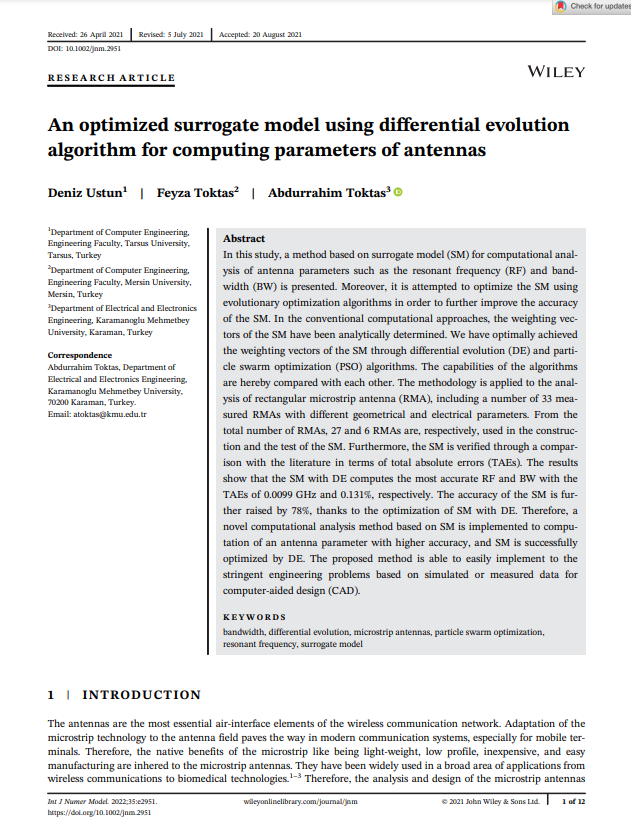

an optimized surrogate model using diffential evolution.png
